Liquid Cooling AI Multi-GPU Server OCG4645-8G

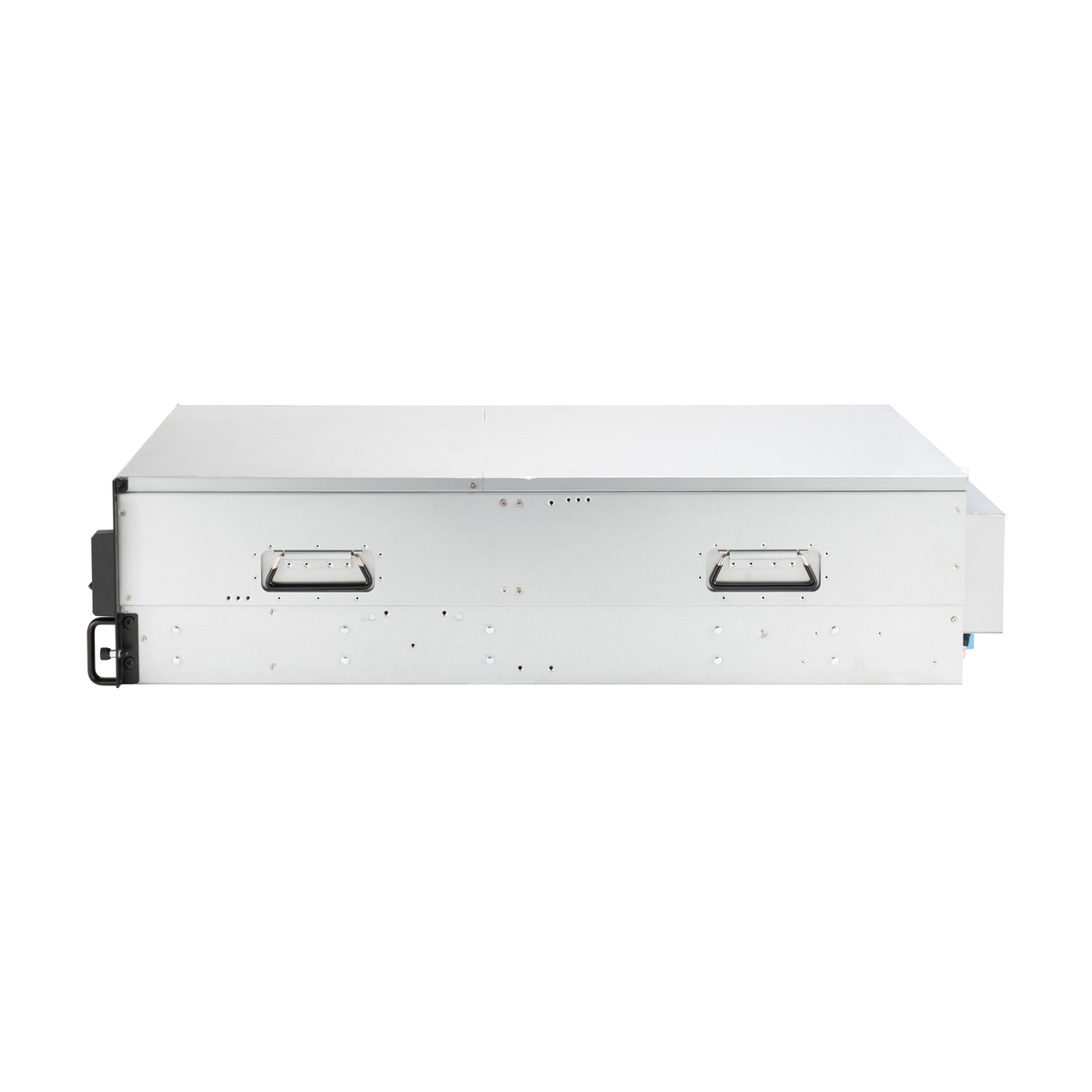

OCG4645-8G Liquid Cooling Server
The OCG4645 – 8G liquid cooling server is an outstanding liquid – cooling server, a top – notch one among servers. It supports the AMD EPYC dual – channel processor with powerful performance. Equipped with five 2000 – watt high – power redundant power supplies, it provides a solid and powerful power guarantee for the stable operation of the server, ensuring stable and strong power supply during the operation of the server.
This server is equipped with eight 64 – gigabyte DDR4 memory modules, with a total memory capacity as high as 512 gigabytes. It can easily handle complex multi – task processing and large – amount data operations, bringing users a smooth and efficient using experience. It also supports eight NVIDIA RTX4090 graphics cards. Whether it’s in graphic rendering, deep – learning or other application scenarios with extremely high requirements for graphics card performance, it can perform perfectly.

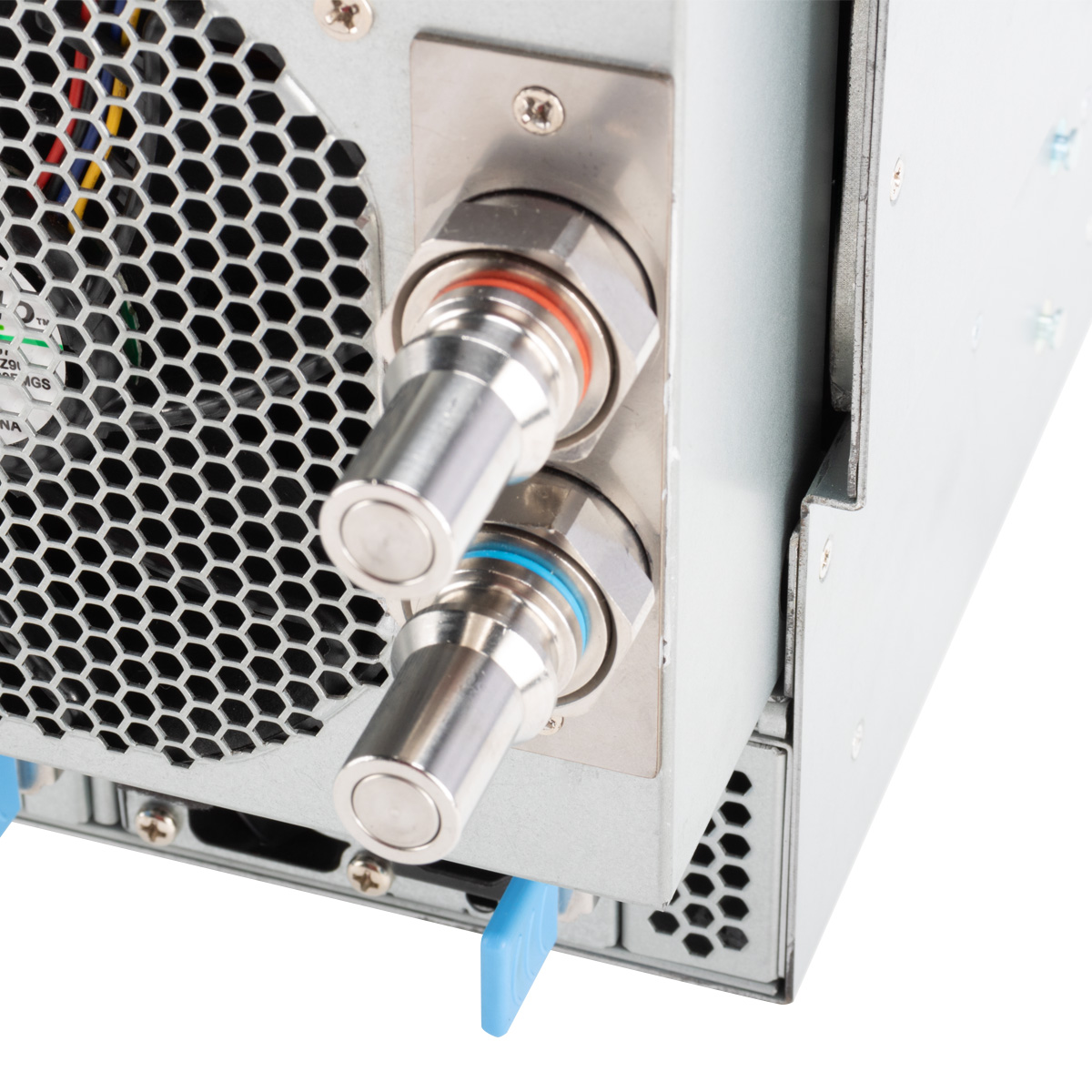

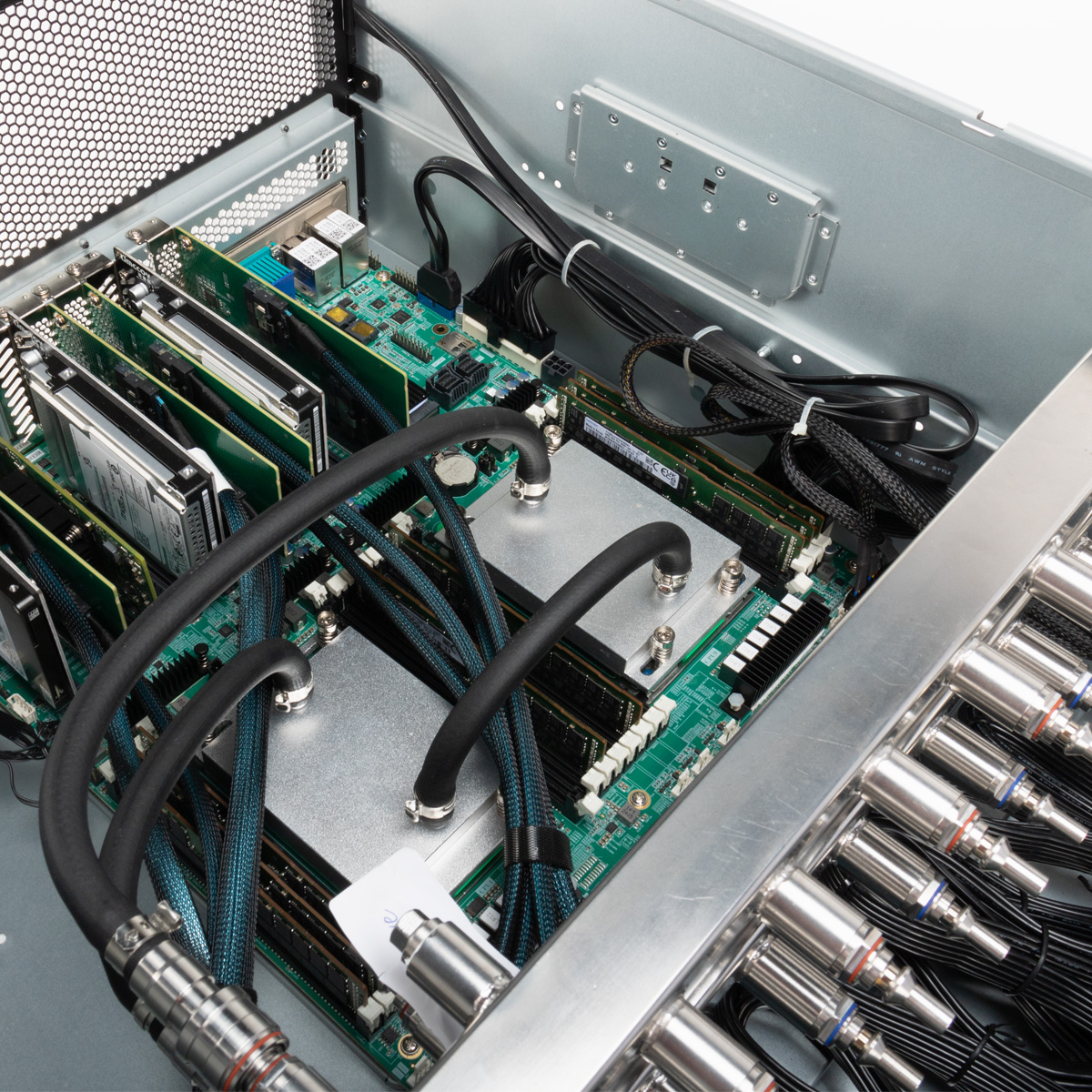

The processor and GPU of the server are cooled by liquid – cooling kits, which can effectively maintain the stable operating temperature of the whole system and ensure the server to work stably under high – load operation. It is worth mentioning that the liquid – cooling kits adopt UQD connectors. These connectors are reliable and durable, effectively preventing the leakage of cooling liquid and further enhancing the security and stability of the server.
Model: | OCG4645-8G liquid cooling server |
Chassis | L(645)* W(435)*H(176)mm,without handle |
Material | 1.0-1.2 mm SGCC |
Platform | AMD dual-channel 8 GPU platform |

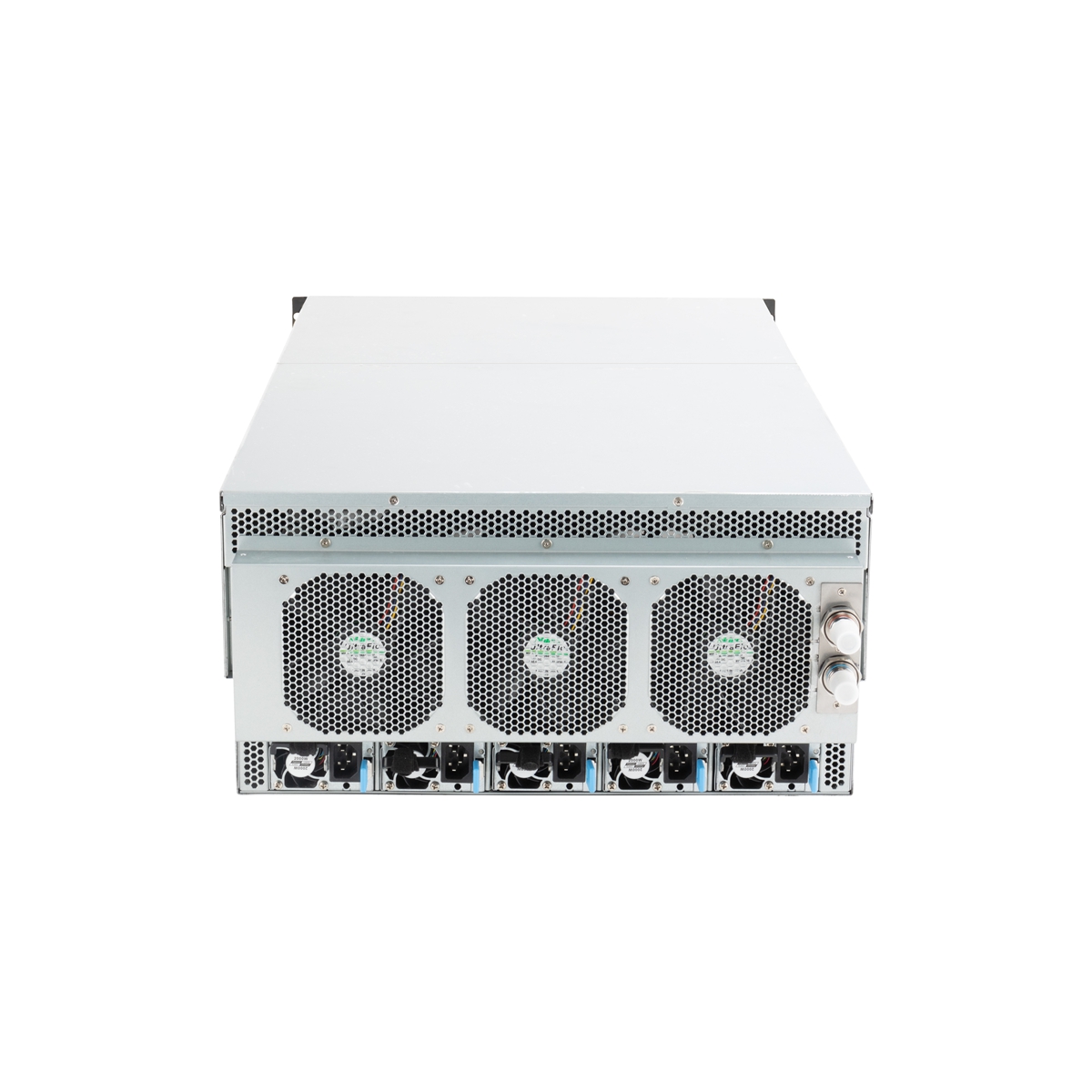

Server PSU | Equipped with high power redundant power supply 2000W*5 |
CPU | AMD EPYC 7K62(2.6GHZ,48C96T)*2, 2.6GHZ |
RAM | 8* 64G DDR4,Operating frequency 3200MHz,2.6GHZ DDR4 total 512G |
NIC | Dual-port 10 Gbit/s optical fiber(Typical power consumption is generally about 10W) |
System Disk | 2* SATA SSD 480GB, 2.5″,SATA3(6Gbps) |
Data Disk | 7.68TB U.2 NVME SSD(2.5 inches,Read and write speeds can reach thousands of MB/s) |
GPU | Supports nVIDIA RTX4090 *8 |

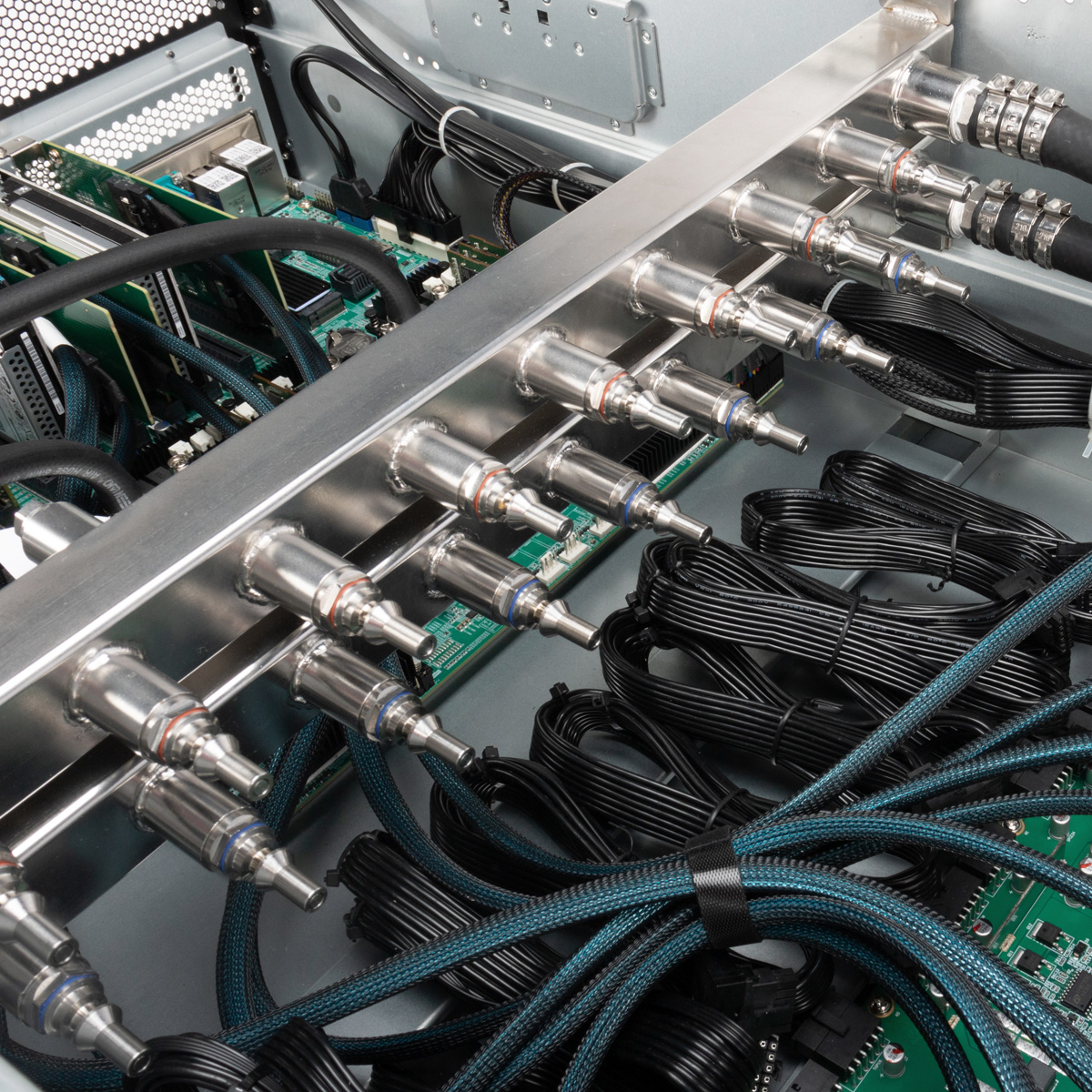

Smart water cooling kit | 1.CPU water-cooled plates and tubes*2 2.GPU water-cooled plates and tubes*8 3.separate water collectors in the chassis*2 4.sets of UQD quick connectors*12Transform the intelligent water cooling kit, the inlet temperature is 35℃, the outlet temperature is 41℃. The maximum inlet and outlet water pressure is 1MPa,Support 200W to 500W heat relief capacity |
Packing size | 108*57*35cm |
Gross Weight | 55KG |
