OCG6860-8G

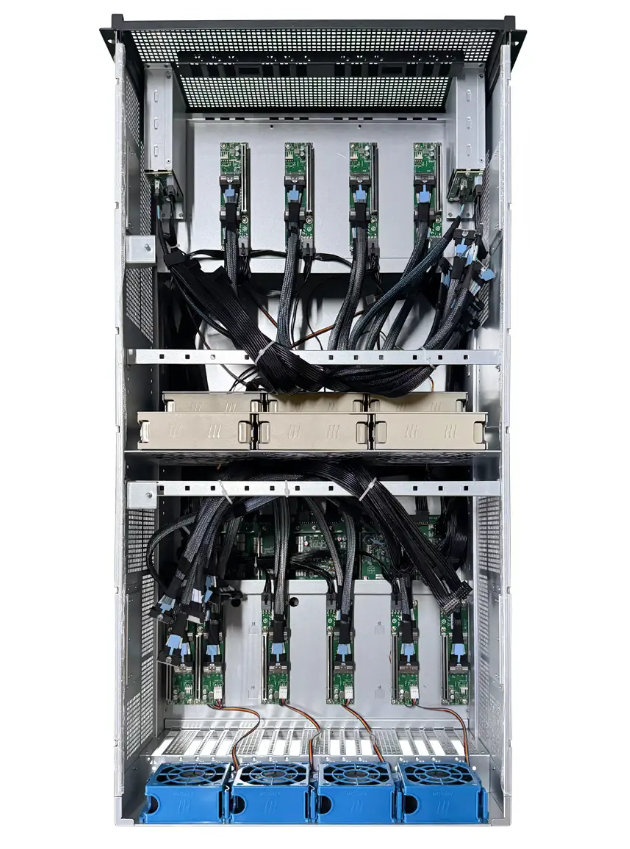

OCG6860-8G GPU server highlights: Supports ASRock rack GENOA2D24G-2L+ motherboard. High-power 1600W*4 redundant power supply with 4+1 power board. 10 PCIe5.0 cards (8*PCIe5.0 x16 for GPU, 2*PCIe5.0 x8 for other expansions). Supports 8* nVIDIA RTX4090, card distance ≥88MM. 2* 2bay 2.5″ HDD/SSD NVME modules. Heat dissipation part, equipped with 6*12038 middle window fans and 4*8038 rear window fans. Optional 4U tool-free rails.
Application areas: deep learning and artificial intelligence, scientific computing, graphics and image processing, big data processing, cloud computing and cloud gaming, smart security
| Model: | OCG6860-8G GPU server |
| Chassis | L(860)* W(435)*H(270)mm, without handle |
| Material | 1.0-1.2 mm SGCC |
| Motherboard | Supported ASRock rack GENOA2D24G-2L+ |
| Server PSU | Equipped with high power redundant power supply 1600W*4 |
| Power Board | 4+1 power supply board, Supports up to 5 redundant power supplies. Includes a full set of power cables (GPU Card and HDD backplane) |

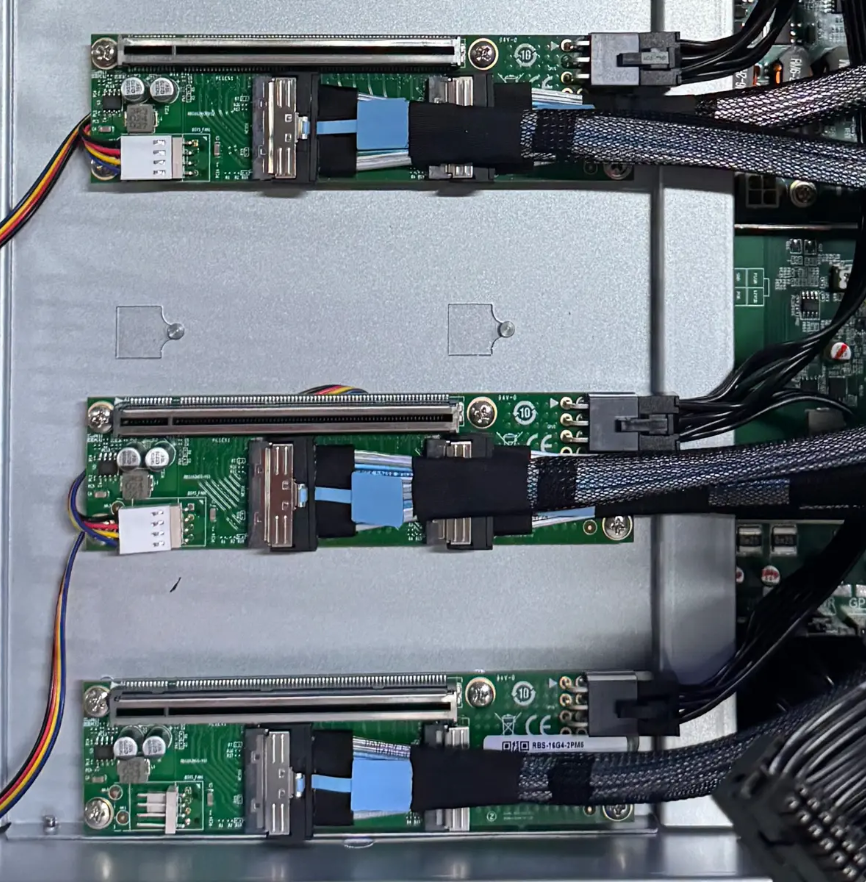

| PCIe5.0 Card | Total 10 pcs, PCIe 5.0 to MCIO Conversion Solution PCIE expansion board optimizes the data transfer rate of your computer with a PCle5.0 card. 8*PCIe5.0 x16 for GPU. 2*PCIe5.0 x8 for Other Expansions |
| GPU | Supports nVIDIA RTX4090 *8, The distance between cards is greater than or equal to 88MM |

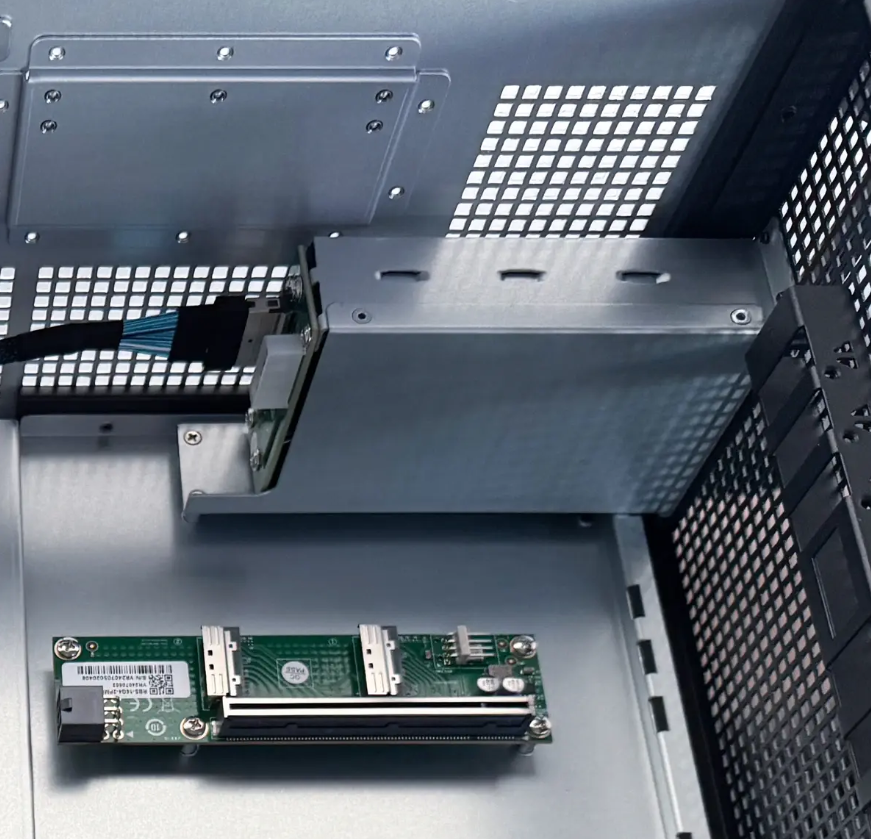

| Hot-Swap Drive | 2* 2bay 2.5“ HDD/SSD NVME Modules(SFF-8654 to MCIO), total 4bay HDD/SSD |
| Data transmission line | MCIO to MCIO cable * 18 MCIO to SFF-8654 *2 |

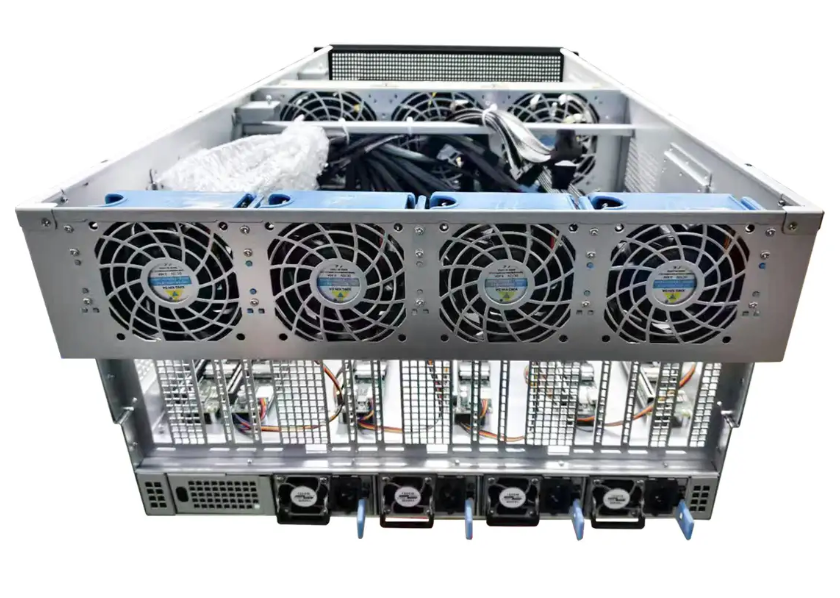

| FAN | Middle 6*12038 Rear window 4*8038 |
| Packing size | 106.5* 59* 40 cm |
| Rail | 4U Tool-less rails(Optional) |
| Gross Weight | 40KG |
