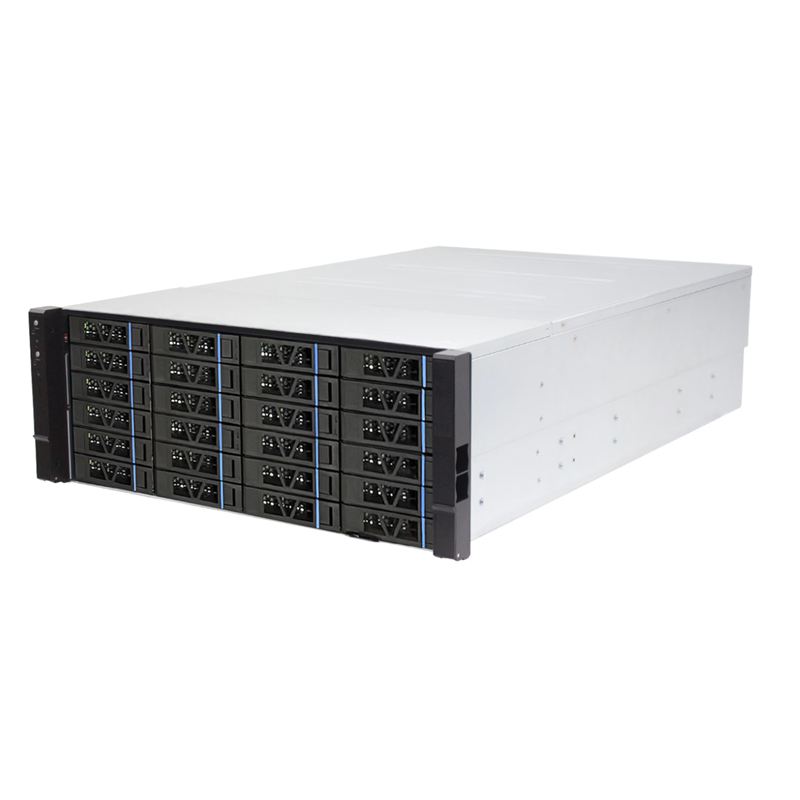

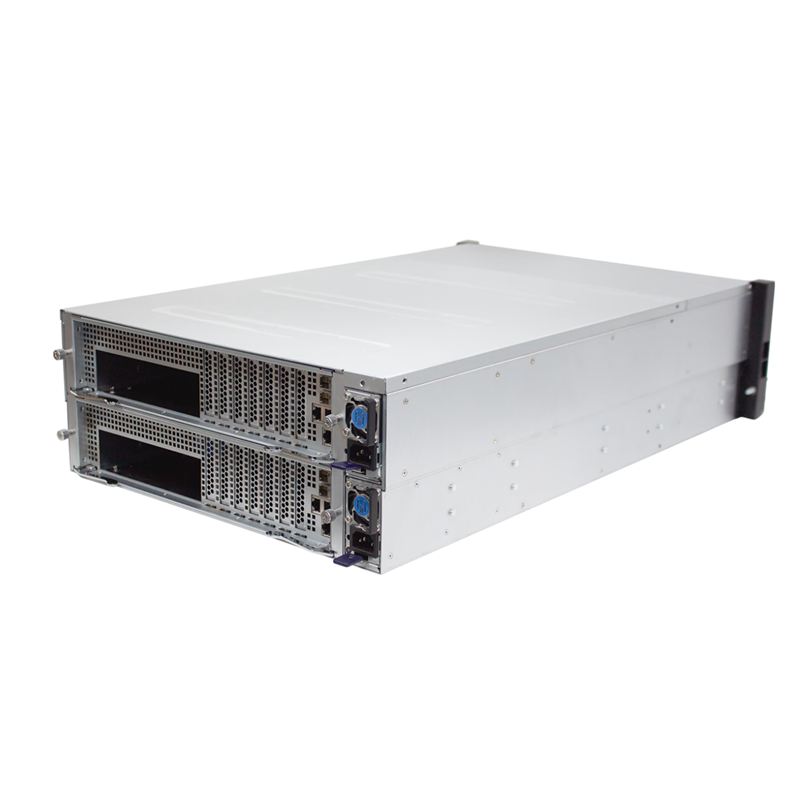

OCDS5000B Series Storage: High-Performance, Reliable, and Scalable
The OCDS5000B Series, built on Intel’s powerful server platform, is a next-generation dual-controller 24-bay storage solution. Designed for cloud architectures, it boasts a robust storage operating system, cutting-edge hardware, and intelligent management software accessible via a user-friendly WEB GUI. Key features include:
High Performance: Optimized for demanding applications like OLTP/OLAP databases.
High Availability: Cache protection with large-capacity write cache and zero data loss on power failure.
Reliable File System: Enhanced file system for superior data integrity.
Scalability: Easily expandable to meet growing storage needs.
Ease of Management: Intuitive WEB GUI simplifies administration.
Ideal for enterprises, education, healthcare, finance, telecom, and energy sectors, the OCDS5000B Series excels in file sharing, cloud computing, and other data-intensive applications.
Feature | OCDS5000B-W |
SCU Form factor | 4U,24 Bays |
Maximum HDD | 480 |
Maximum original capacity | 2400TB |

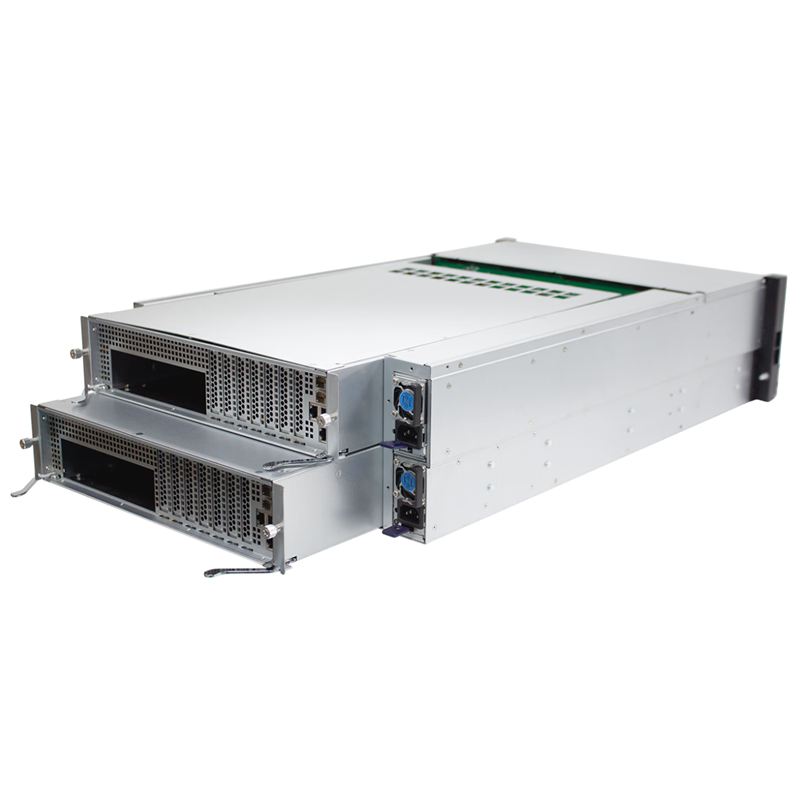

Number of controllers | 2 |
Controller mode | Active-Active |
Memory | 16GB-512GB |
Write cache | Support write cache mirroring, power failure zero data loss |
EXP Form factor | 4U,24 Bays |
Supported storage protocols | FC、 iSCSI、 NFS、CIFS |
Network Interface | 1/10Gbps Ethernet、8/16Gbps FC |
Back-end Interface | Four x4 12Gb,SAS3.0 |
Maximum number of front-end host ports | 8*GE+16*GE/8*10GE/8*FC |

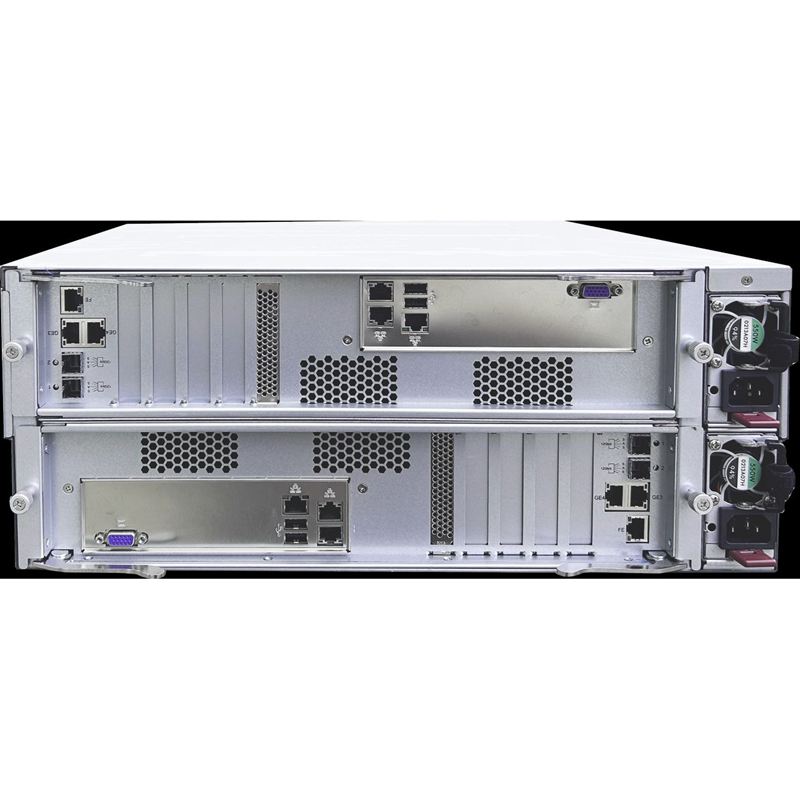

Ports | 2*VGA/4*USB/2*RS232/2*FE |
HDD | 1-16TB 3.5inch SATA / SAS HDD/ 1-16TB 2.5inch SAS HDD/ SAS SSD |
RAID Level | RAID 0、1、5、6、10 |
RAID features | Supports RAID striping, reconstruction, Delta reconstruction, and automatic delta synchronization. Supports multiple disk media errors, write recovery under read error, and permanent metadata protection for RAID groups |
Other features | Self-start when power on, power on hard disk one by one, hard disk locate and alarm, every hard disk slot power control, SFF8644 signal enhancement, fan regulation by temperature |
Snapshots (LUN) | 1024 |
LUN | 1024 Logical volume |
A file system | 128TB |
Data protection | Snapshots , LUN copy,Remote replication |
Storage management | Multipath management, centralized device management |
Hypervisor features | KVM,VMware,XenServer,Hyper-V |
BBU | Super capacitor or power lithium battery module |
Fans | 1+1 High power turbofan |
Power Input | AC 100V~127V/200V~240V; 60Hz/50Hz |
Power module | 1+1 550W,optional 800W / 1200W |
Ambient Temperature | 10–35°C (50–95°F) while operating; |
-40 – 55°C(-40 – 135°F) while in storage, according to the surroundings. |
Relative humidity | 10%RH~90%RH |
Size(W×H×D) | 440mm x 175mm x 680mm |
Weight (No hard disk) | Gross weight: 31.00kg |
Net weight: 30.00kg |
