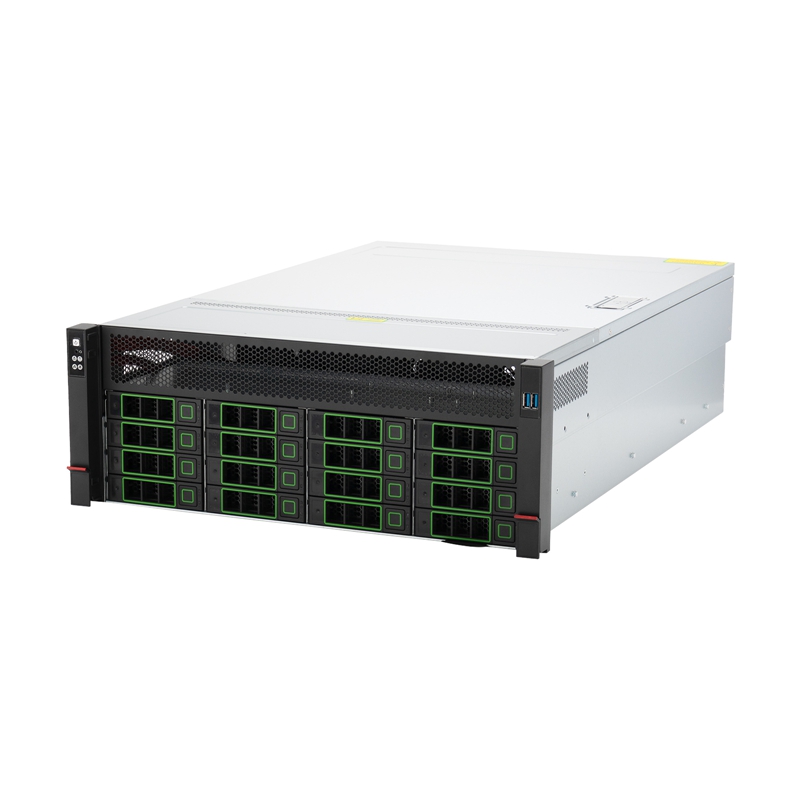

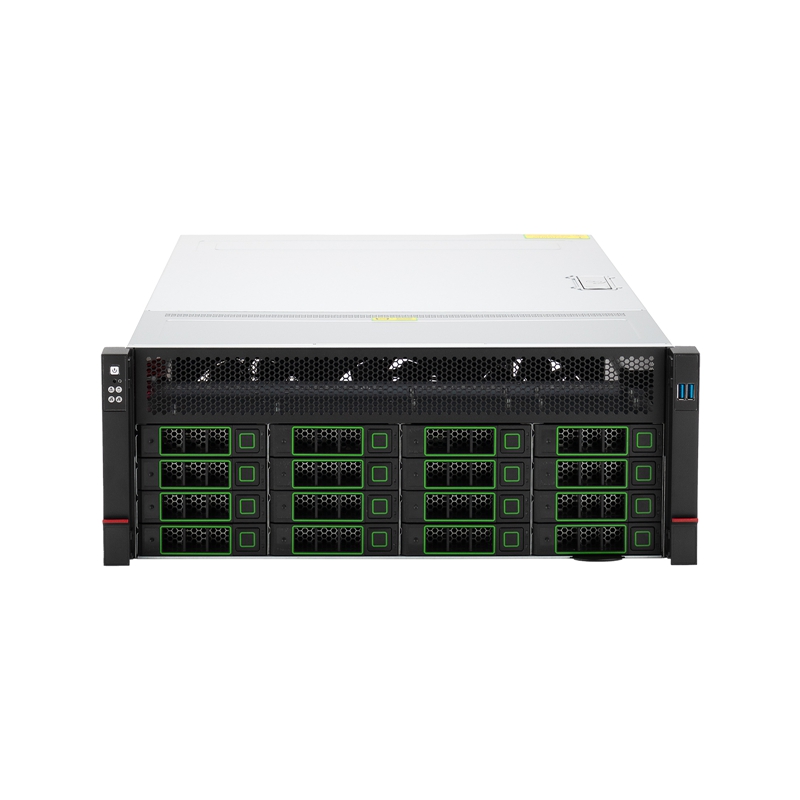

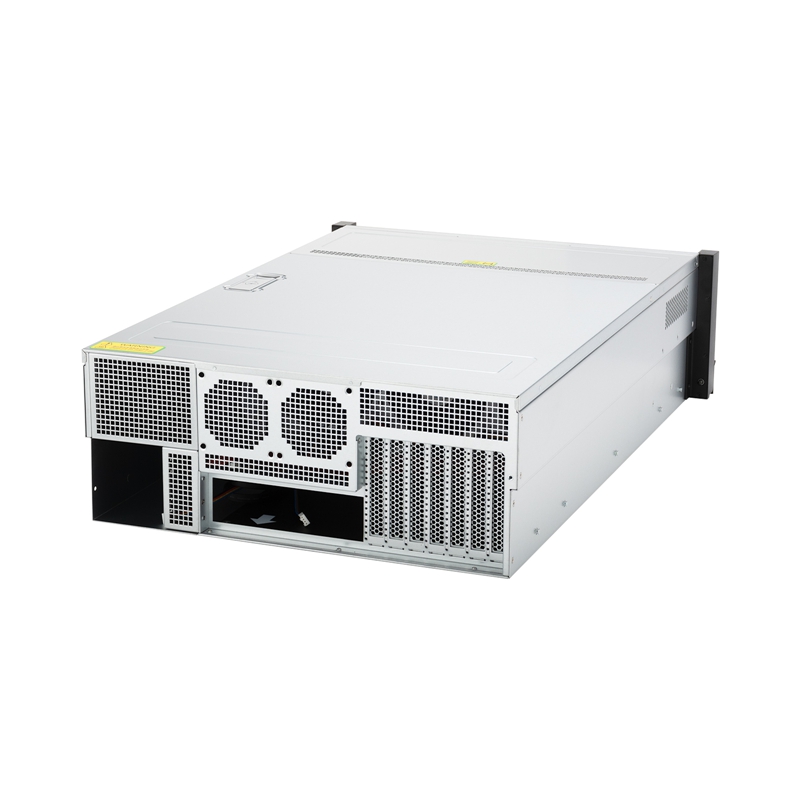

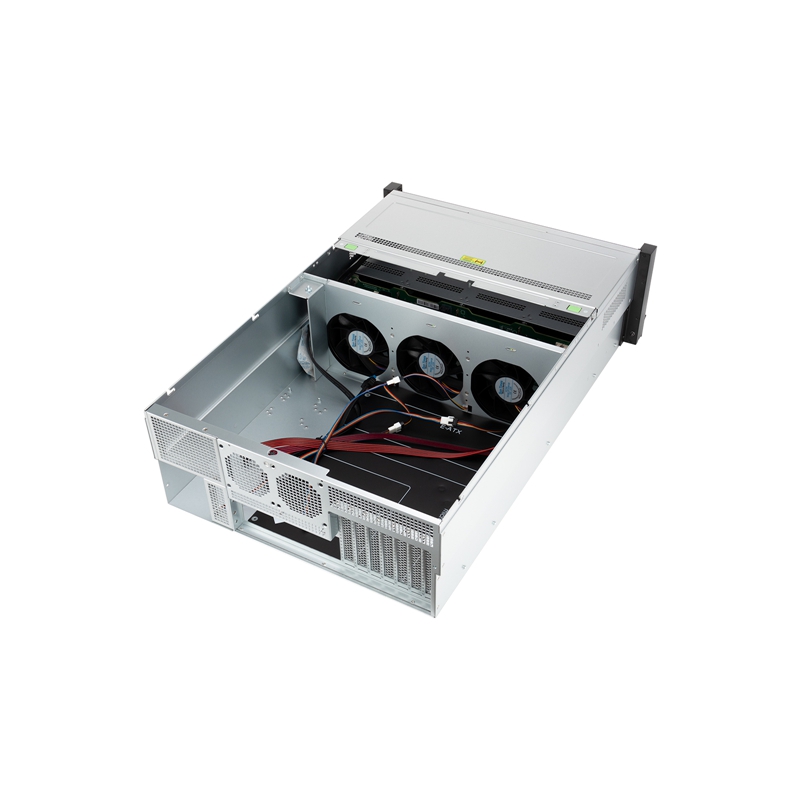

4U Storage Server case-OC4680-16B
server case
Description
Package Information
Inquiry
| Model | OC-4680-16B |
| Material | 1.0-1.2 mm SGCC |
| Dimension | 680mm*482mm*178mm (D*W*H), 4U Storage case |
| Drive bays | 16* 3.5″HDD or 16* 2.5″SSD |
| M/B form factor | Support motherboard size up to E-ATX (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), ITX (7" x 7") |
| Backplane | 12G bps SATA/ SAS |
| Power | ATX Power & Redundant power |
| Cooling fan | 3*12cm fan |
| Front Panel | Power ON/OFF*1,HDD*1, NIC*2, Power Alarm *1,Power ON/OFF Switch*1, System reset Switch*1, ID Switch*1 |
| Expansion space | 7* Full-height PCI-E expansion slots |
| USB ports | USB 3.0* 2 |
| Rail | Support |
| Package | Double carton |
| Color | White |
| Net weight | 17KG |
| Gross weight | 19.95KG |
| Package size | 87*58*33CM (D*W*H) |
| Application | Storage, application servers, and security system. |
