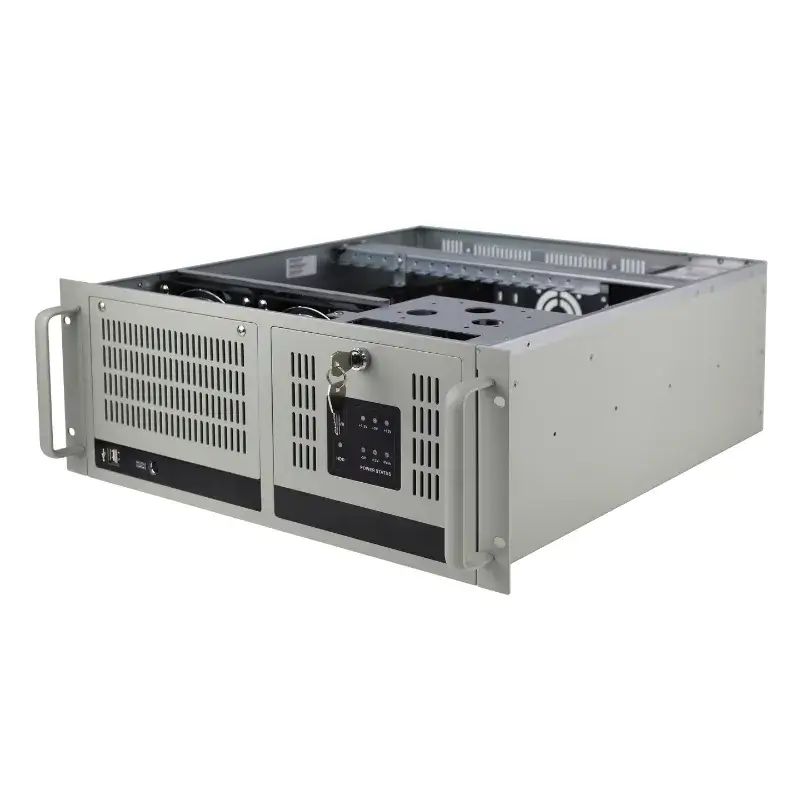

4U Rackmount Chassis - OCIPC610H-T
The OneChassis OCIPC610H-T is a 4U rackmount case designed for ATX motherboards. It includes two 80mm cooling fans for effective airflow and thermal management, ensuring your drives and components remain cool. The air intake features a dust and moisture filter to maintain internal cleanliness over time.

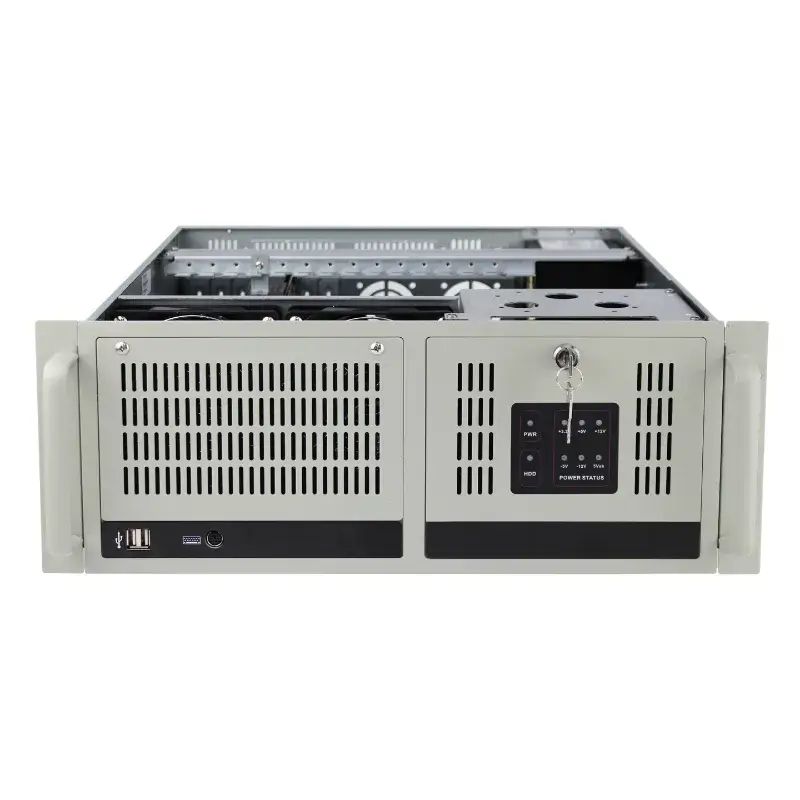

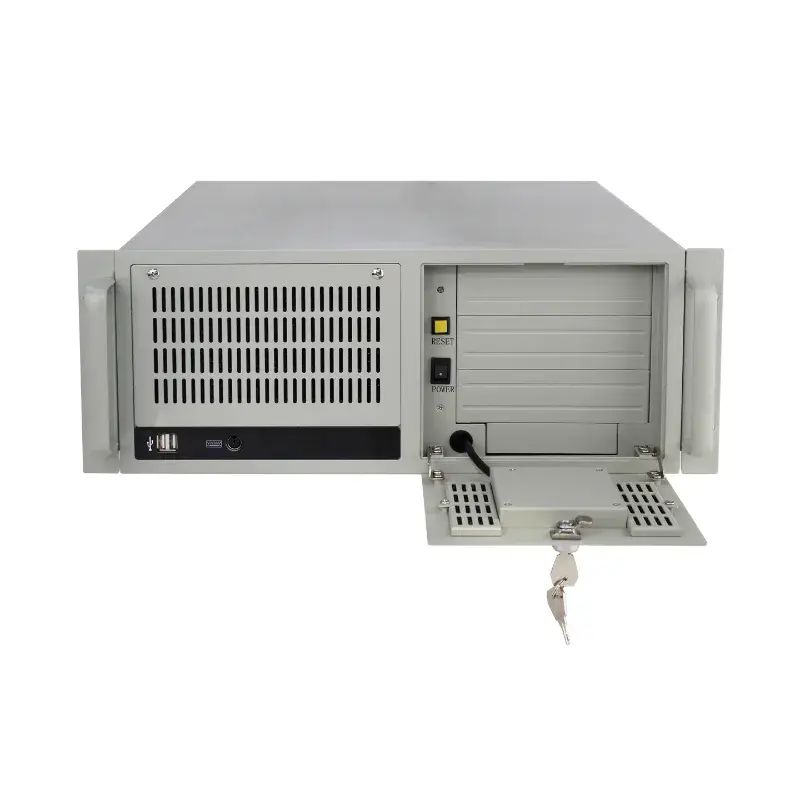

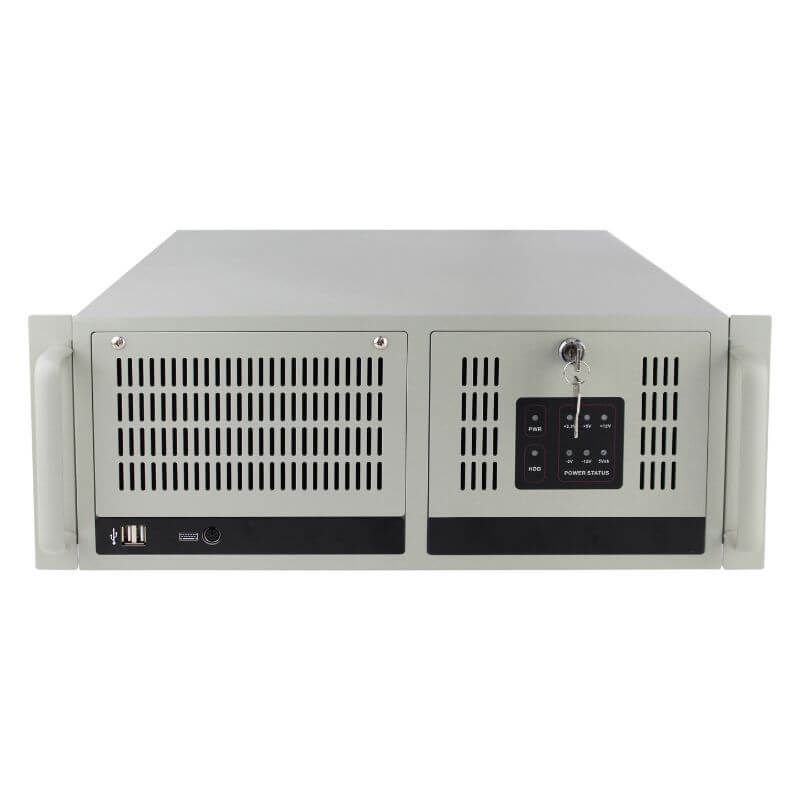

The front panel integrates the I/O ports and optical drive into a lockable door for secure and convenient access. This rugged chassis is well-suited for automation, equipment manufacturing, power monitoring, communication, security, and defense applications.
- Compatible with Standard ISA/PCI/PCIMG backplanes or up to 12″ x 10.5″ motherboards
- Supports PS2 or redundant power supplies
- Constructed from SGCC steel
- Features two front USB 2.0 ports
- Accommodates one 3.5″ floppy drive or one 2.5″ internal HDD
- Supports up to three 5.25″ optical drive bays

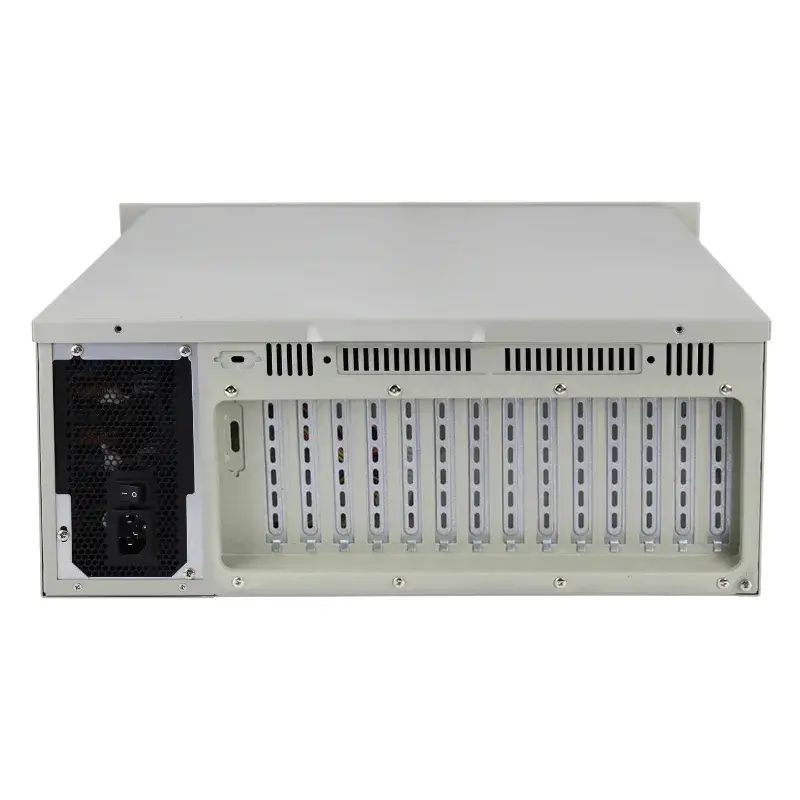

- Replaceable 7-slot or 14-slot rear window
- Includes two 80mm cooling fans
- Power supply not included
Description
Package Information
Inquiry
- Compatible with Standard ISA/PCI/PCIMG backplanes or up to 12″ x 10.5″ motherboards
- Supports PS2 or redundant power supplies
- Constructed from SGCC steel
- Features two front USB 2.0 ports
- Accommodates one 3.5″ floppy drive or one 2.5″ internal HDD
- Supports up to three 5.25″ optical drive bays
- Replaceable 7-slot or 14-slot rear window
- Includes two 80mm cooling fans
- Power supply not included
Model | OCIPC610H-T |
Dimensions (mm) | L480mm* W427mm* H177mm |
Material | Environmentally friendly, fingerprint resistant 1.2mm SGCC |
HDD and FDD bits | 1* 3.5″ HDD bay or 1* 3.5″ Floppy drive bay |
CD-ROM bit | 3* 5.25″ optical drive bays |
Power supply | Support PS2 power supply or redundant power supply |
Fan position | 2* 8025 fans |
Room for expansion | 7-slot rear window or 14-slot rear window can be replaced |
USB interface | Support 2 front USB ports |
Suitable for motherboard | Standard ISA/PCI/PCIMG industrial backplane or 12″*10.5″ and below the industrial motherboard |
Application field | Widely used in industrial control, intelligent transportation, mechanical automation, the Internet of Things, security monitoring, and other fields |
