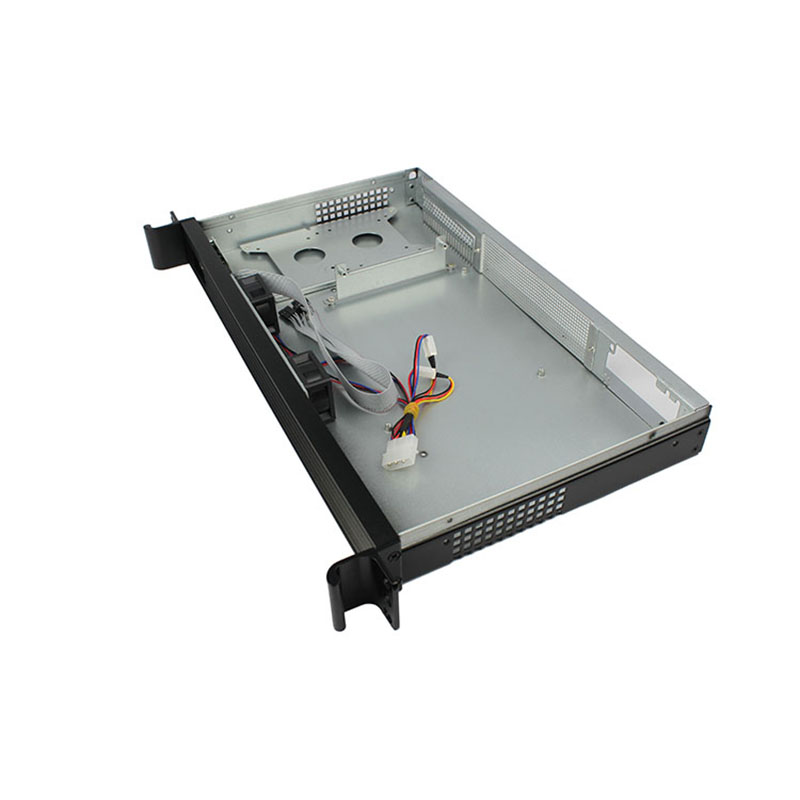

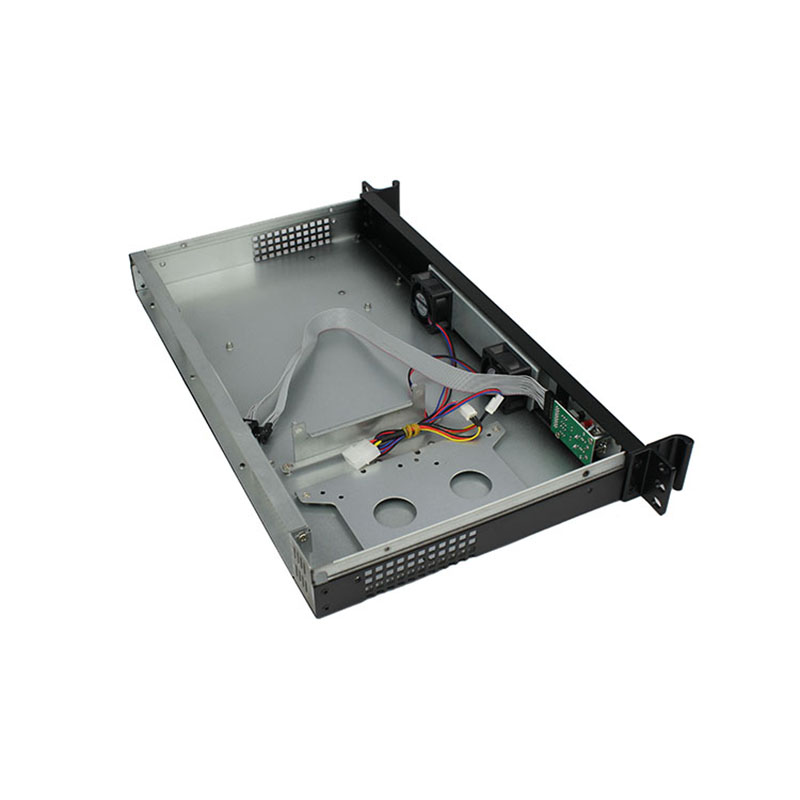

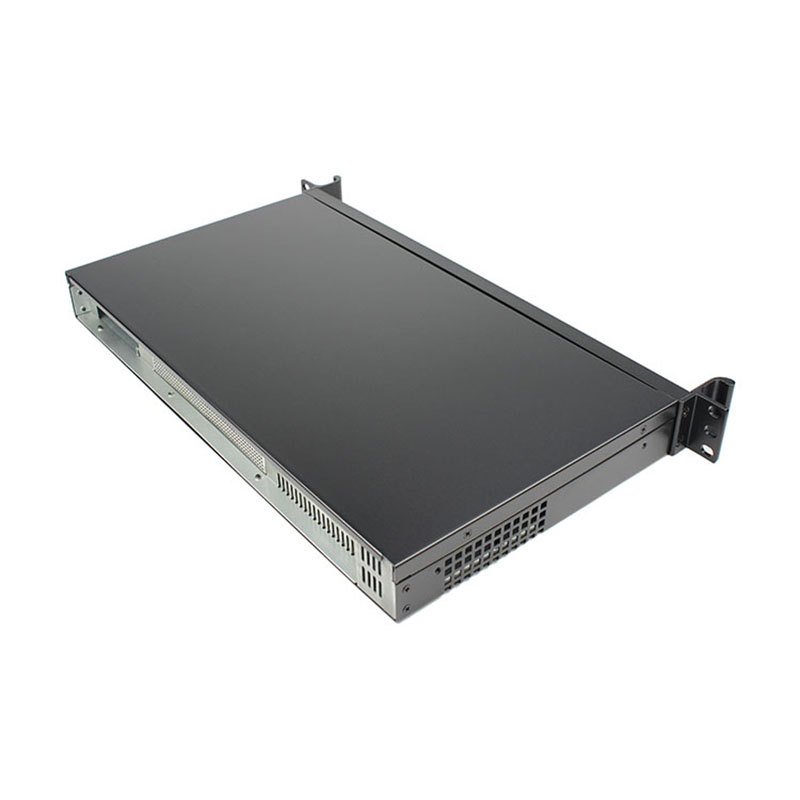

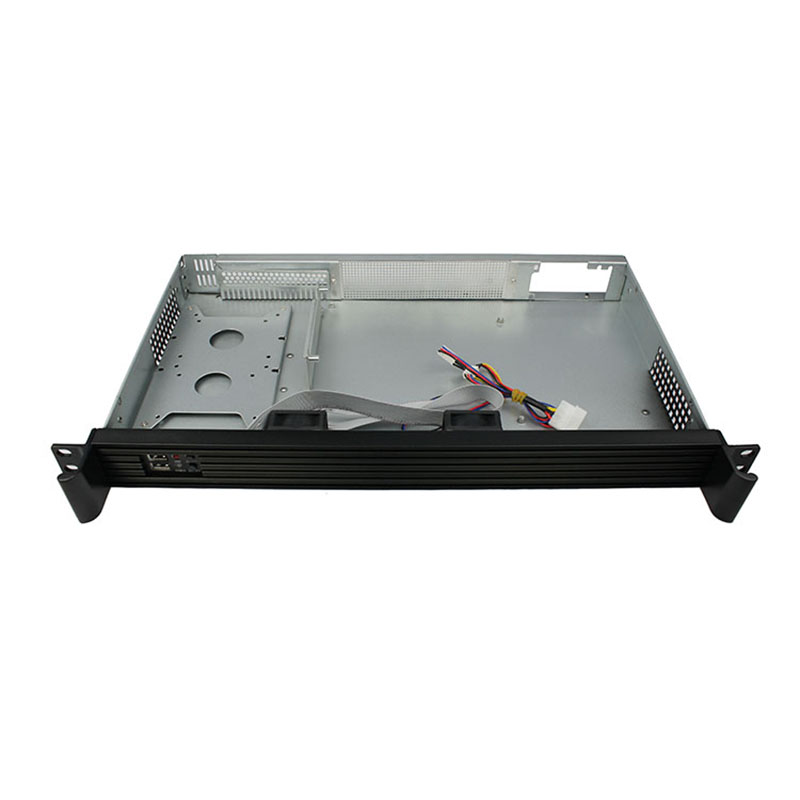

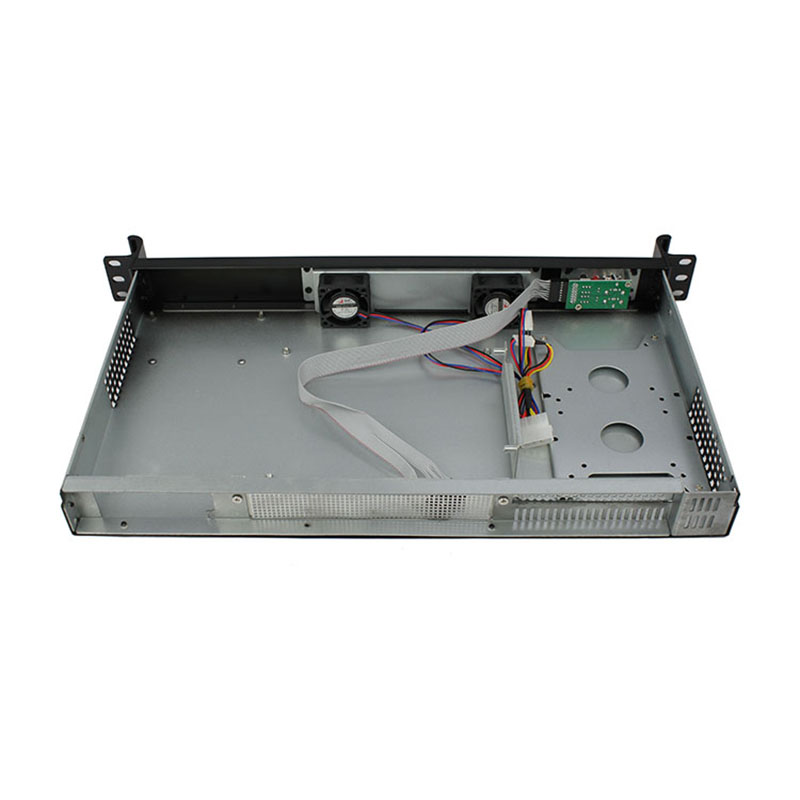

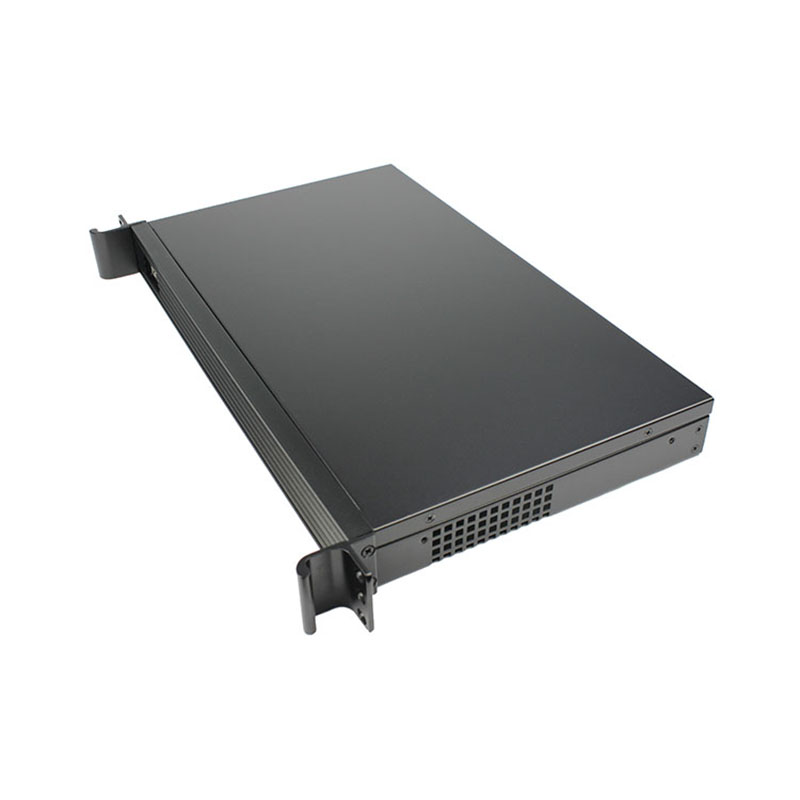

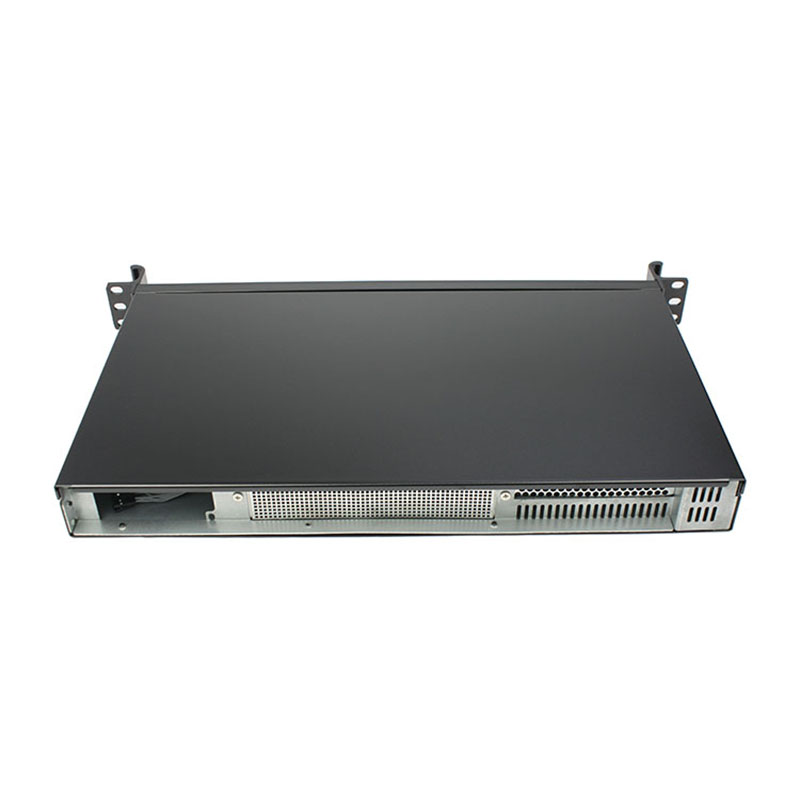

1U Rackmount Chassis- OC125L-M
The ITX form factor is compatible with the OneChassis OC125L-M 1U rackmount chassis. Excellent airflow and a thermal protection system are provided by the two front, pre-installed cooling fans inside the aluminum chassis. Ensure that the enclosures and drives do not overheat.
1* 3.5′′ HDD or 2*2.5′′ SSDs, as well as one PCI expansion slot, are included in this 1U rackmount chassis for expansion possibilities. Numerous industries, including automation, equipment manufacture, power monitoring, communication, security, and defense, use this industrial computer.
Description
Package Information
Inquiry
Support ITX Motherboard
Support Flex Power Supply
SGCC steel construction
2* Front USB 2.0 ports
Support 1* 3.5″ HDD or 2*2.5" SSD
2* 40mm cooling fan
Power supply NOT included
| Model | OC125L-M |
| Dimensions(mm) | 482(W)* 250(D)* 44.5(H) |
| MotherBoard | 7″* 7″(170* 170mm) |
| Hard Disk | 1* 3.5" HDD or 2* 2.5-inch SSD |
| CD-ROM | None |
| Power | 1U Flex power |
| Fan | 2* 4020 Fan |
| Expansion Slot | 1 High straight slot (with switching card / sold separately) |
| Panel Setting | 2 USB2.0, a power switch, a restart switch, a power indicator, a hard disk indicator |
| Case Material | SGCC |
| Material Thickness | 1.0mm |
| Packaging size | 54* 38.5* 14.5cm(0.03CBM) |
| Gross weight | 3.65KG |
| Net Weight | 2.55KG |
| Container loading quantity | 20GP: 900 ; 40GP: 1870 ; 40HC(HQ): 2190 |
